The Hearst Series - BLSDH
Architectural Suspended Linear
Versatile Commercial & Industrial Linear Lighting

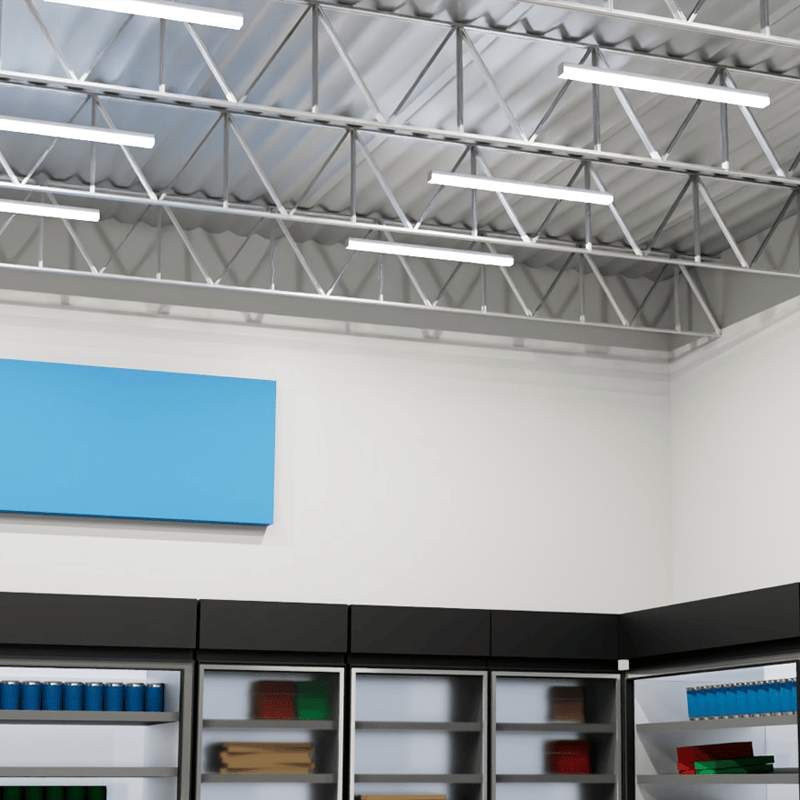

Our linear lighting products are designed for clean linear runs with versatile mounting options including suspended, pendant, wall-mount, and surface mount. These fixtures are quick to produce, revise, are very efficient to ship in bulk, and are excellent for aisles, displays, retail/grocery stores, and manufacturing.
BLSDH - The Hearst Series
The Hearst Series (BLSDH) is an architectural linear lighting solution designed for easy linking with customizable corner and transition elements. Engineered to deliver seamless transitions with no visible light leakage, it offers multiple optic options and continuous runs up to 80 ft. Ideal for offices, aisles, conference rooms, retail spaces, and other architectural environments.
| Supported Voltage | 120-277V, 347V, 120-347V |
| Available Sizes | Linear by 6" increments up to 10', 2x2/4x4 corners, custom pieces available* |
| Lumen Output | Lumen output ranging from 0.25L(250lm) to 2.25L(2250lm) |
| Lifetime | L70 of 99,000+ hours, L90 of 30,000+ hours |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| CRI | 80+ standard, 90+ and 95+ available |
| Dimming | 0-10V Standard |
| Mounting | Holes provided for surface and suspended mounting; Knock-outs for row-mounting |
| Applications | Aisle Lighting, Displays, Grocery Stores, Hospitals, Offices, Retail Stores, Schools, Task Lighting, Suspended, Surface Mount |
BLS1 - The Sundre Series
The Sundre Series (BLS1) is a linear fixture series which is ideal for decorative architectural lighting applications such as displays, grocery stores, museums, and other implementations where clean perimeter lighting is desired.
| Supported Voltage | 120-277V, 120-347V, 347V |
| Available Sizes | 4', 8' |
| Lumen Output | Lumen output/ft ranging from 250lm-1600lm |
| Lifetime | L70 of 200,000+ hours, L90 of 60,000+ hours |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| CRI | 80+ standard, 90+ and 95+ available |
| Dimming | 0-10V Standard |
| Applications | Displays, Grocery Stores, Retail Stores, Suspended, Aisle Lighting |
BLSPT-SL - The Series
The BLSPT-SL is an extended series of our BLSP linear fixture designed for asymmetric task lighting and illumination of wall-mounted signage or advertisements. Its true length is well suited for indoor use where high efficiency, row-mountable task lighting is required.
| Supported Voltage | 120-277V, 347V, 120-347V |
| Available Sizes | 2', 4', 6', 8', 10' - true length(1' is exactly 1' in length, etc) *custom sizes available |
| Lifetime | L70 of 99,000+ hours, L90 of 30,000+ hours |
| Lumens | 1' 1.125L (1125lm) to 8' 23L (23000lm) |
| Operating Temperature | -20°C/+25°C (-40°/+40°C upgrade) |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| CRI | 80+ standard, 90+ and 95+ available |
| Dimming | 0-10V Standard |
| Mounting | Holes provided for V-hangers, S-hook chain-mounting, or aircraft cables. Optional pendant mount and row-mount brackets. Knockouts provided for row mounting |
| Applications | Sign Lighting, Advertisements, Aisle Lighting, Displays, Grocery Stores, Hospitals, Offices, Retail Stores, Schools, Task Lighting, Suspended, Surface Mount |
BLSP - The Prescott Series
The Prescott Series (BLSP) is an LED linear fixture designed for general purpose lighting with a wide range of mounting, controls and options support. This linear lighting series is cost-effective, efficient, and easy to install- making it ideal for all applications.
| Supported Voltage | 120-277V, 120-347V, 347V, 480V |
| Available Sizes | 1', 2', 4', 6', 8', 10', *custom sizes available |
| Lumen Output | 1' 1.125L (1126lm) to 8' 23L (23191lm) |
| Lifetime | L70 of 99,000+ hours, L90 of 30,000+ hours |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| CRI | 80+ standard, 90+ and 95+ available |
| Dimming | 0-10V Standard |
| Mounting | Holes provided for V-hangers, S-hook chain-mounting, or aircraft cables; Optional pendant-mount and row-mount brackets; Knockouts provided for row-mounting |
| Applications | Aisle Lighting, Displays, Grocery Stores, Hospitals, Offices, Retail Stores, Schools, Task Lighting, Suspended, Surface Mount |
