BLSP
LED Linear Strip Fixture

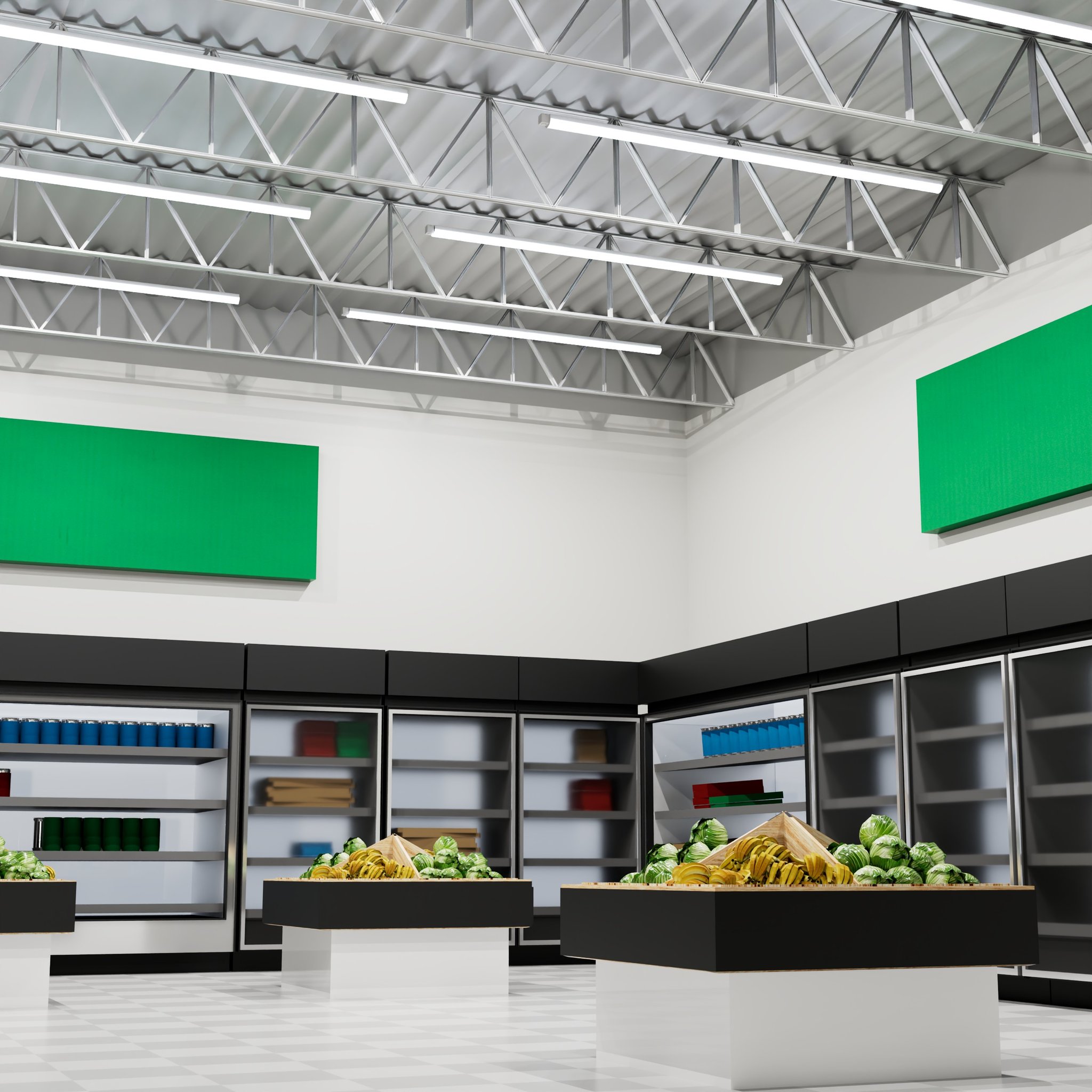

The BLSP is an LED linear strip fixture designed for surface and suspended mounting. It provides high efficiency and is cost-effective, ideal for most applications.
Files and Resources
Wattage Tables
BLSP, 4' Wattage Table
Size
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
4'
2.50
2603
17.90
145.20
4'
3.50
3673
25.60
143.50
4'
4.50
4716
33.30
141.80
4'
5.50
5734
40.90
140.10
4'
6.50
6725
48.60
138.40
4'
7.50
7690
56.30
136.70
4'
8.50
8629
63.90
135.00
4'
9.50
9542
71.60
133.30
4'
10.50
10430
79.30
131.60
4'
11.50
11291
86.90
129.90
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 4' | 2.50 | 2603 | 17.90 | 145.20 |
| 4' | 3.50 | 3673 | 25.60 | 143.50 |
| 4' | 4.50 | 4716 | 33.30 | 141.80 |
| 4' | 5.50 | 5734 | 40.90 | 140.10 |
| 4' | 6.50 | 6725 | 48.60 | 138.40 |
| 4' | 7.50 | 7690 | 56.30 | 136.70 |
| 4' | 8.50 | 8629 | 63.90 | 135.00 |
| 4' | 9.50 | 9542 | 71.60 | 133.30 |
| 4' | 10.50 | 10430 | 79.30 | 131.60 |
| 4' | 11.50 | 11291 | 86.90 | 129.90 |
BLSP, 1' Wattage Table
Size
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
1'
1.12
1126
7.30
153.60
1'
1.38
1377
9.20
148.90
2'
1.75
1755
11.10
158.30
2'
2.25
2253
14.70
153.60
2'
2.75
2753
18.50
148.50
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 1' | 1.12 | 1126 | 7.30 | 153.60 |
| 1' | 1.38 | 1377 | 9.20 | 148.90 |
| 2' | 1.75 | 1755 | 11.10 | 158.30 |
| 2' | 2.25 | 2253 | 14.70 | 153.60 |
| 2' | 2.75 | 2753 | 18.50 | 148.50 |
BLSP, 8' Wattage Table
Size
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
8'
5
5345
35.70
149.60
8'
7
7541
51.00
147.90
8'
9
9683
66.30
146.10
8'
11
11772
81.50
144.40
8'
13
13807
96.80
142.60
8'
15
15789
112.10
140.90
8'
17
17717
127.40
139.10
8'
19
19591
142.60
137.40
8'
21
21412
157.90
135.60
8'
23
23191
173.30
133.90
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 8' | 5 | 5345 | 35.70 | 149.60 |
| 8' | 7 | 7541 | 51.00 | 147.90 |
| 8' | 9 | 9683 | 66.30 | 146.10 |
| 8' | 11 | 11772 | 81.50 | 144.40 |
| 8' | 13 | 13807 | 96.80 | 142.60 |
| 8' | 15 | 15789 | 112.10 | 140.90 |
| 8' | 17 | 17717 | 127.40 | 139.10 |
| 8' | 19 | 19591 | 142.60 | 137.40 |
| 8' | 21 | 21412 | 157.90 | 135.60 |
| 8' | 23 | 23191 | 173.30 | 133.90 |
Product Overview
Features
- • Operating temperature ranges available from -40C to 40C
- • L70 of 99,000+ hours, L90 of 30,000+ hours
- • Standard 0 - 10V dimming
- • Available in 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
- • Lumen packages are available ranging from 1' 1.125L (1126lm) to 8' 23L (23191lm)
Construction
- • Manufactured in Ontario, Canada
- • Powder-coated in high reflectance gloss white (other colours available)
- • Precision bent for added strength and rigidity
- • Welded end caps
Approvals
- • ETL certified to UL Canada and United States standards
- • Dry and Damp Environment Rated
- • Made with UL Listed components
- • DLC Listed
Electrical
- • Available in 120-277V, 120-347V, 347V and 480V
Mounting
- • Holes provided for V-hangers, S-hook chain-mounting, or aircraft cables
- • Optional pendant-mount and row-mount brackets
- • Knockouts provided for row-mounting
Options
- • Custom lengths available
- • Wireless Controls Available
- • 90 and 95+ CRI Options Available
- • 120-347V(UN3) Available
Files and Resources
Wattage Tables
BLSP, 4' Wattage Table
Size
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
4'
2.50
2603
17.90
145.20
4'
3.50
3673
25.60
143.50
4'
4.50
4716
33.30
141.80
4'
5.50
5734
40.90
140.10
4'
6.50
6725
48.60
138.40
4'
7.50
7690
56.30
136.70
4'
8.50
8629
63.90
135.00
4'
9.50
9542
71.60
133.30
4'
10.50
10430
79.30
131.60
4'
11.50
11291
86.90
129.90
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 4' | 2.50 | 2603 | 17.90 | 145.20 |
| 4' | 3.50 | 3673 | 25.60 | 143.50 |
| 4' | 4.50 | 4716 | 33.30 | 141.80 |
| 4' | 5.50 | 5734 | 40.90 | 140.10 |
| 4' | 6.50 | 6725 | 48.60 | 138.40 |
| 4' | 7.50 | 7690 | 56.30 | 136.70 |
| 4' | 8.50 | 8629 | 63.90 | 135.00 |
| 4' | 9.50 | 9542 | 71.60 | 133.30 |
| 4' | 10.50 | 10430 | 79.30 | 131.60 |
| 4' | 11.50 | 11291 | 86.90 | 129.90 |
BLSP, 1' Wattage Table
Size
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
1'
1.12
1126
7.30
153.60
1'
1.38
1377
9.20
148.90
2'
1.75
1755
11.10
158.30
2'
2.25
2253
14.70
153.60
2'
2.75
2753
18.50
148.50
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 1' | 1.12 | 1126 | 7.30 | 153.60 |
| 1' | 1.38 | 1377 | 9.20 | 148.90 |
| 2' | 1.75 | 1755 | 11.10 | 158.30 |
| 2' | 2.25 | 2253 | 14.70 | 153.60 |
| 2' | 2.75 | 2753 | 18.50 | 148.50 |
BLSP, 8' Wattage Table
Size
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
8'
5
5345
35.70
149.60
8'
7
7541
51.00
147.90
8'
9
9683
66.30
146.10
8'
11
11772
81.50
144.40
8'
13
13807
96.80
142.60
8'
15
15789
112.10
140.90
8'
17
17717
127.40
139.10
8'
19
19591
142.60
137.40
8'
21
21412
157.90
135.60
8'
23
23191
173.30
133.90
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 8' | 5 | 5345 | 35.70 | 149.60 |
| 8' | 7 | 7541 | 51.00 | 147.90 |
| 8' | 9 | 9683 | 66.30 | 146.10 |
| 8' | 11 | 11772 | 81.50 | 144.40 |
| 8' | 13 | 13807 | 96.80 | 142.60 |
| 8' | 15 | 15789 | 112.10 | 140.90 |
| 8' | 17 | 17717 | 127.40 | 139.10 |
| 8' | 19 | 19591 | 142.60 | 137.40 |
| 8' | 21 | 21412 | 157.90 | 135.60 |
| 8' | 23 | 23191 | 173.30 | 133.90 |
Photometry
BLSP-4FT-5.5L-840-L18 - Cone of Light & Candela Polar Plot
Mtg Height
Light Level
Beam Diameter
6.00
48.10
17.40
8.00
27.10
23.20
10.00
17.30
29.00
12.00
12.00
34.80
14.00
8.80
40.60
16.00
6.80
46.40
| Mtg Height | Light Level | Beam Diameter |
|---|---|---|
| 6.00 | 48.10 | 17.40 |
| 8.00 | 27.10 | 23.20 |
| 10.00 | 17.30 | 29.00 |
| 12.00 | 12.00 | 34.80 |
| 14.00 | 8.80 | 40.60 |
| 16.00 | 6.80 | 46.40 |
BLSP-8FT-11L-840-L18 - Cone of Light & Candela Polar Plot
Mtg Height
Light Level
Beam Diameter
6.00
81.90
24.20
8.00
46.10
32.20
10.00
29.50
40.30
12.00
20.50
48.40
14.00
15.00
56.40
16.00
11.50
64.50
| Mtg Height | Light Level | Beam Diameter |
|---|---|---|
| 6.00 | 81.90 | 24.20 |
| 8.00 | 46.10 | 32.20 |
| 10.00 | 29.50 | 40.30 |
| 12.00 | 20.50 | 48.40 |
| 14.00 | 15.00 | 56.40 |
| 16.00 | 11.50 | 64.50 |
Light Loss Factor (LLF)
| CCT | Output% |
|---|---|
| 2700K | 92.95 |
| 3000K | 95.51 |
| 3500K | 96.80 |
| 4000K | 100.00 |
| 5000K | 101.28 |
| 90CRI | 84.72 |
