BLRE
LED Recessed Strip

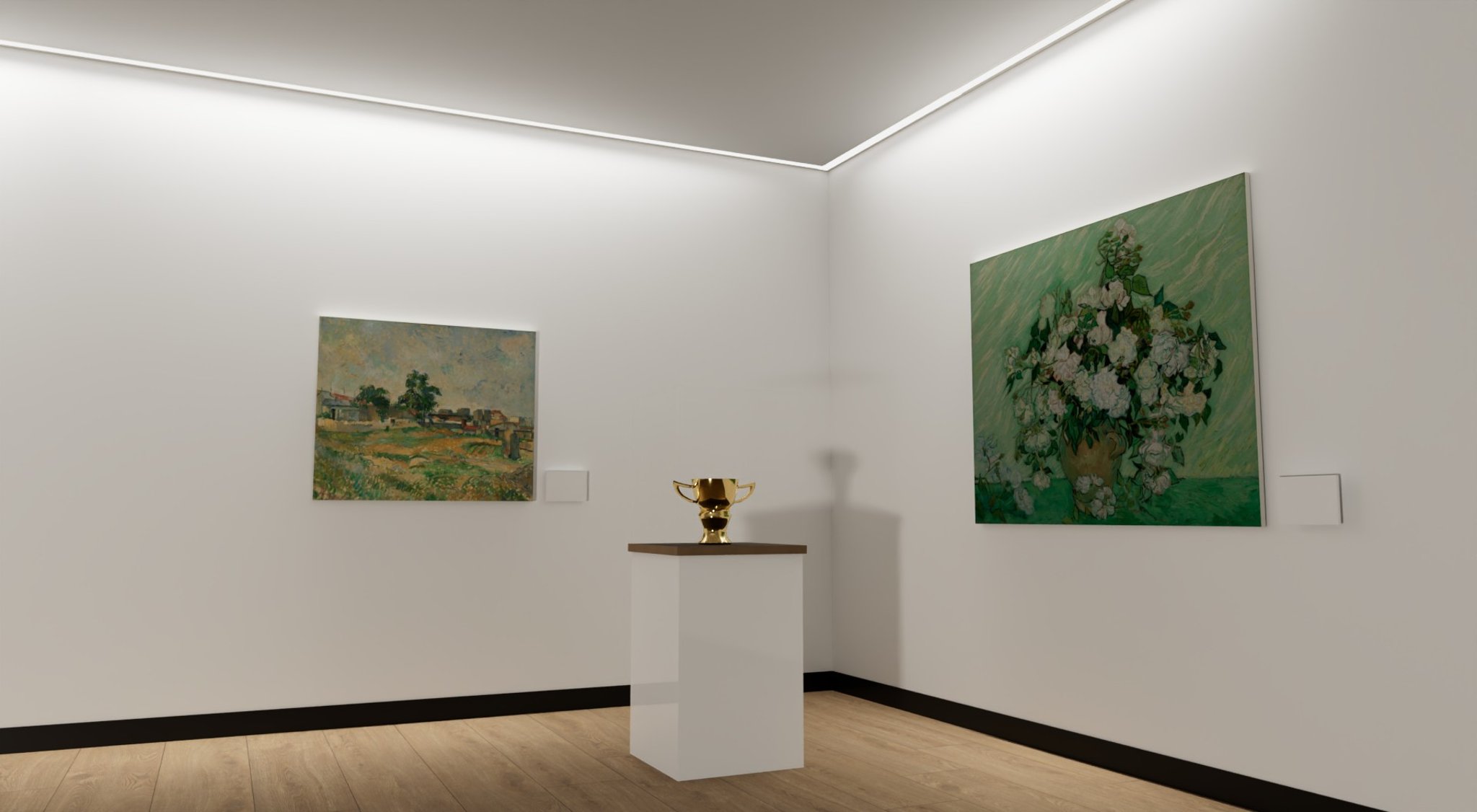

The BLRE recessed LED strip fixture is designed for energy efficiency and performance, ideal for interior perimeter lighting in commercial spaces. ETL certified and easy to install.
Files and Resources
Wattage Tables
BLRE, 2' Wattage Table
Length
Lumen Output
Fixture Wattage
2'
1.00
10.60
2'
2.00
22.70
| Length | Lumen Output | Fixture Wattage |
|---|---|---|
| 2' | 1.00 | 10.60 |
| 2' | 2.00 | 22.70 |
BLRE, 4' Wattage Table
Length
Lumen Output
Fixture Wattage
4'
2.00
21.20
4'
3.00
30.30
4'
4.00
42.70
| Length | Lumen Output | Fixture Wattage |
|---|---|---|
| 4' | 2.00 | 21.20 |
| 4' | 3.00 | 30.30 |
| 4' | 4.00 | 42.70 |
BLRE, 8' Wattage Table
Length
Lumen Output
Fixture Wattage
8'
4.00
38.10
8'
6.00
60.70
8'
8.00
85.50
| Length | Lumen Output | Fixture Wattage |
|---|---|---|
| 8' | 4.00 | 38.10 |
| 8' | 6.00 | 60.70 |
| 8' | 8.00 | 85.50 |
Product Overview
Features
- • Operating temperature ranges available from -20C to 25C
- • Standard 0 - 10V dimming
- • Available in 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
- • Lumen packages are available ranging from 2FT 1L (1000lm) to 8FT 8L (8000lm)
Construction
- • Manufactured in Ontario, Canada
- • Shallow fixture design for easy installation
- • Powder-coated in high-reflectance gloss white
- • Access panel provided for easy wiring
- • Cold-rolled steel parts are precision bent for added strength and rigidity
Approvals
- • ETL certified to UL Canada and United States standards
- • Made with UL Listed components
Electrical
- • Available in 120-277V, 120-347V, 347V and 480V
Mounting
- • Holes provided for chain or hanger, and wire mounting support for T-Bar ceilings
- • Drywall mud and tape
- • Drywall clamp
Options
- • Wireless Controls Available
- • 90 and 95+ CRI Options Available
- • 120-347V(UN3) Available
Files and Resources
Wattage Tables
BLRE, 2' Wattage Table
Length
Lumen Output
Fixture Wattage
2'
1.00
10.60
2'
2.00
22.70
| Length | Lumen Output | Fixture Wattage |
|---|---|---|
| 2' | 1.00 | 10.60 |
| 2' | 2.00 | 22.70 |
BLRE, 4' Wattage Table
Length
Lumen Output
Fixture Wattage
4'
2.00
21.20
4'
3.00
30.30
4'
4.00
42.70
| Length | Lumen Output | Fixture Wattage |
|---|---|---|
| 4' | 2.00 | 21.20 |
| 4' | 3.00 | 30.30 |
| 4' | 4.00 | 42.70 |
BLRE, 8' Wattage Table
Length
Lumen Output
Fixture Wattage
8'
4.00
38.10
8'
6.00
60.70
8'
8.00
85.50
| Length | Lumen Output | Fixture Wattage |
|---|---|---|
| 8' | 4.00 | 38.10 |
| 8' | 6.00 | 60.70 |
| 8' | 8.00 | 85.50 |
Photometry
BLRE-3W-4FT-3L-840-H29 - Cone of Light & Candela Polar Plot
Mtg Height
Light Level
Beam Diameter
6.0 ft
32.9 fc
14.5 ft
8.0 ft
18.5 fc
19.4 ft
10.0 ft
11.9 fc
24.2 ft
12.0 ft
8.2 fc
29.1 ft
14.0 ft
6.1 fc
33.9 ft
16.0 ft
4.6 fc
38.7 ft
| Mtg Height | Light Level | Beam Diameter |
|---|---|---|
| 6.0 ft | 32.9 fc | 14.5 ft |
| 8.0 ft | 18.5 fc | 19.4 ft |
| 10.0 ft | 11.9 fc | 24.2 ft |
| 12.0 ft | 8.2 fc | 29.1 ft |
| 14.0 ft | 6.1 fc | 33.9 ft |
| 16.0 ft | 4.6 fc | 38.7 ft |
