BLS1
Architectural Linear UpDown

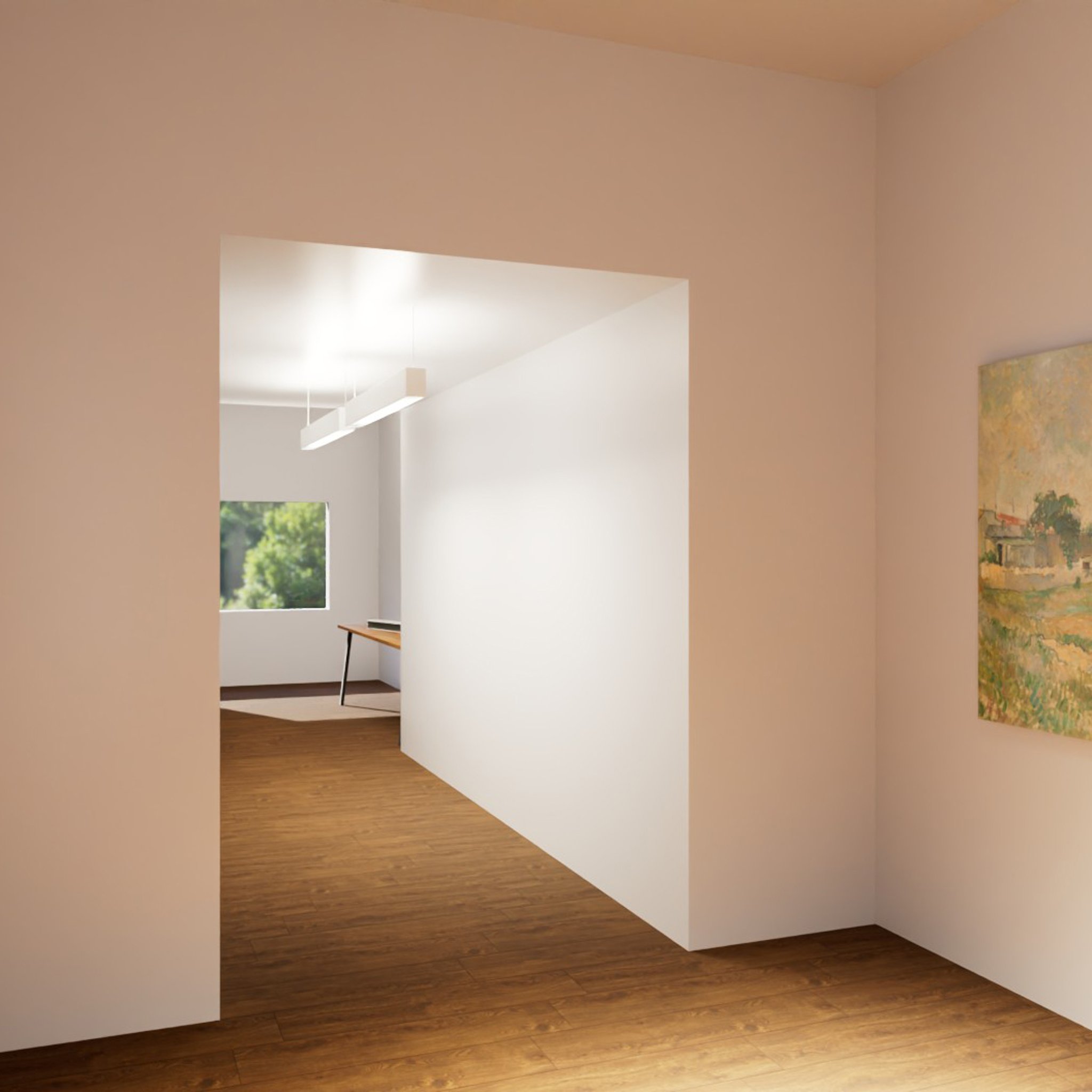

The BLS1 LED decorative linear fixture is ideal for indoor use, providing energy efficiency and performance. Its modern profile and superior light paths make it a versatile choice for various applications.
Files and Resources
Wattage Tables
BLS1, 4' Wattage Table
Fixture Size
Down Light Lumen Output
Fixture Wattage
Up Light Lumen Output
Fixture Wattage.1
4'
1.00
8.90
0.50
5.00
4'
1.50
13.90
1.00
8.90
4'
2.00
19.00
1.50
13.90
4'
2.50
22.80
2.00
19.00
4'
3.00
29.00
2.50
22.80
4'
3.50
33.50
3.00
29.00
4'
4.00
40.90
NaN
NaN
| Fixture Size | Down Light Lumen Output | Fixture Wattage | Up Light Lumen Output | Fixture Wattage.1 |
|---|---|---|---|---|
| 4' | 1.00 | 8.90 | 0.50 | 5.00 |
| 4' | 1.50 | 13.90 | 1.00 | 8.90 |
| 4' | 2.00 | 19.00 | 1.50 | 13.90 |
| 4' | 2.50 | 22.80 | 2.00 | 19.00 |
| 4' | 3.00 | 29.00 | 2.50 | 22.80 |
| 4' | 3.50 | 33.50 | 3.00 | 29.00 |
| 4' | 4.00 | 40.90 | NaN | NaN |
BLS1, 8' Wattage Table
Fixture Size
Down Light Lumen Output
Fixture Wattage
Up Light Lumen Output
Fixture Wattage.1
8'
2.00
17.80
1.00
10.00
8'
3.00
27.80
2.00
17.80
8'
4.00
38.00
3.00
27.80
8'
5.00
45.60
4.00
38.00
8'
6.00
58.00
5.00
45.60
8'
7.00
67.00
6.00
58.00
8'
8.00
81.80
NaN
NaN
| Fixture Size | Down Light Lumen Output | Fixture Wattage | Up Light Lumen Output | Fixture Wattage.1 |
|---|---|---|---|---|
| 8' | 2.00 | 17.80 | 1.00 | 10.00 |
| 8' | 3.00 | 27.80 | 2.00 | 17.80 |
| 8' | 4.00 | 38.00 | 3.00 | 27.80 |
| 8' | 5.00 | 45.60 | 4.00 | 38.00 |
| 8' | 6.00 | 58.00 | 5.00 | 45.60 |
| 8' | 7.00 | 67.00 | 6.00 | 58.00 |
| 8' | 8.00 | 81.80 | NaN | NaN |
Product Overview
Features
- • Operating temperature ranges available from -20C to 40C
- • Standard 0 - 10V dimming
- • Available in 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
Construction
- • Manufactured in Ontario, Canada
- • Powder-coated in high reflectance gloss white (other colours available)
- • Precision bent for added strength and rigidity
Approvals
- • Made with UL Listed components
Electrical
- • Available in 120-277V, 120-347V, 347V and 480V
Options
- • Wireless Controls Available
- • 90 and 95+ CRI Options Available
- • 120-347V(UN3) Available
