BLLA
Suspended Mount LED Low Bay

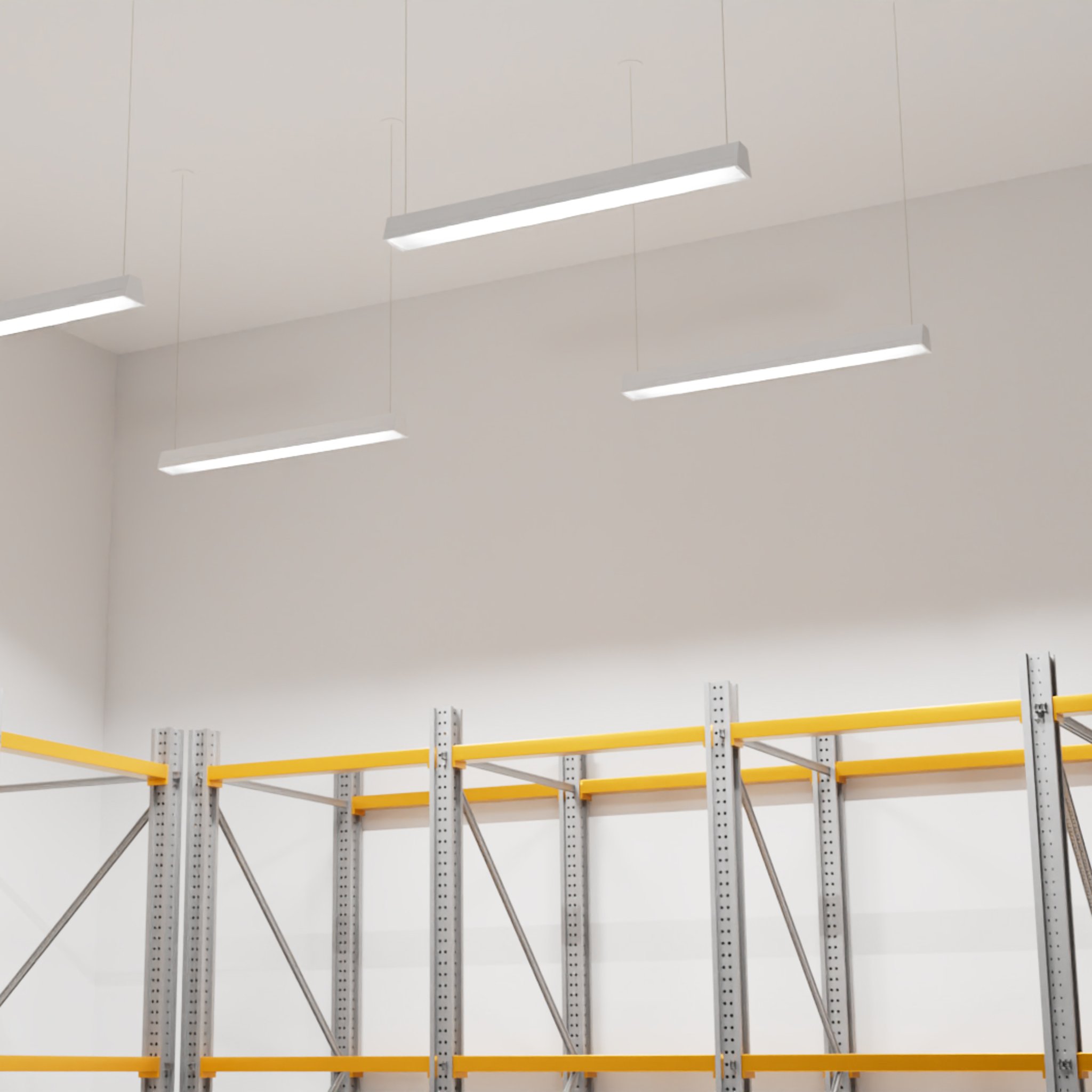

The BLLA LED low bay fixture offers energy-efficient lighting with a durable, easy-to-maintain design for low and high bay applications.
Files and Resources
Wattage Tables
BLLA, 2' Wattage Table
Length
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
2'
10
9492.00
65.20
145.70
2'
12
11424.60
79.30
144.10
| Length | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 2' | 10 | 9492.00 | 65.20 | 145.70 |
| 2' | 12 | 11424.60 | 79.30 | 144.10 |
BLLA, 4' Wattage Table
Length
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
4'
14
13232.00
90.10
146.80
4'
15
14703.60
100.90
145.80
4'
18
17399.00
119.30
145.80
4'
20
18437.40
130.00
141.80
4'
24
22191.30
158.20
140.30
| Length | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 4' | 14 | 13232.00 | 90.10 | 146.80 |
| 4' | 15 | 14703.60 | 100.90 | 145.80 |
| 4' | 18 | 17399.00 | 119.30 | 145.80 |
| 4' | 20 | 18437.40 | 130.00 | 141.80 |
| 4' | 24 | 22191.30 | 158.20 | 140.30 |
Product Overview
Features
- • Operating temperature ranges available from -40C to 40C
- • L70 of 145,000+ hours, L90 of 41,000+ hours
- • Standard 0 - 10V dimming
- • Available in 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
- • Lumen packages are available ranging from 2' 10L (10000lm) to 4' 24L (24000lm)
Construction
- • Manufactured in Ontario, Canada
- • Cold-rolled steel parts are precision bent for added strength and rigidity
- • Access panel provided for easy wiring
- • Powder-coated finish in low-gloss white
Approvals
- • ETL certified to UL Canada and United States standards
- • Dry and Damp Environment Rated
- • Made with UL Listed components
Electrical
- • Available in 120-277V, 347V and 480V
Mounting
- • Holes provided for V-hangers, S-hook chain-mounting, or aircraft cables
- • Optional pendant mount and surface mount brackets
Options
- • Motion sensors available
- • Wireless Controls Available
- • 90 and 95+ CRI Options Available
Files and Resources
Wattage Tables
BLLA, 2' Wattage Table
Length
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
2'
10
9492.00
65.20
145.70
2'
12
11424.60
79.30
144.10
| Length | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 2' | 10 | 9492.00 | 65.20 | 145.70 |
| 2' | 12 | 11424.60 | 79.30 | 144.10 |
BLLA, 4' Wattage Table
Length
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
4'
14
13232.00
90.10
146.80
4'
15
14703.60
100.90
145.80
4'
18
17399.00
119.30
145.80
4'
20
18437.40
130.00
141.80
4'
24
22191.30
158.20
140.30
| Length | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 4' | 14 | 13232.00 | 90.10 | 146.80 |
| 4' | 15 | 14703.60 | 100.90 | 145.80 |
| 4' | 18 | 17399.00 | 119.30 | 145.80 |
| 4' | 20 | 18437.40 | 130.00 | 141.80 |
| 4' | 24 | 22191.30 | 158.20 | 140.30 |
Photometry
BLLA-4FT-18L-840-L67 - Cone of Light & Candela Polar Plot
Mtg Height
Light Level
Beam Diameter
6.0 ft
169.9 fc
16.9 ft
8.0 ft
95.6 fc
22.6 ft
10.0 ft
61.2 fc
28.2 ft
12.0 ft
42.5 fc
33.9 ft
14.0 ft
31.2 fc
39.5 ft
16.0 ft
23.9 fc
45.2 ft
| Mtg Height | Light Level | Beam Diameter |
|---|---|---|
| 6.0 ft | 169.9 fc | 16.9 ft |
| 8.0 ft | 95.6 fc | 22.6 ft |
| 10.0 ft | 61.2 fc | 28.2 ft |
| 12.0 ft | 42.5 fc | 33.9 ft |
| 14.0 ft | 31.2 fc | 39.5 ft |
| 16.0 ft | 23.9 fc | 45.2 ft |
