BLSDI
Decorative Retail Low Bay

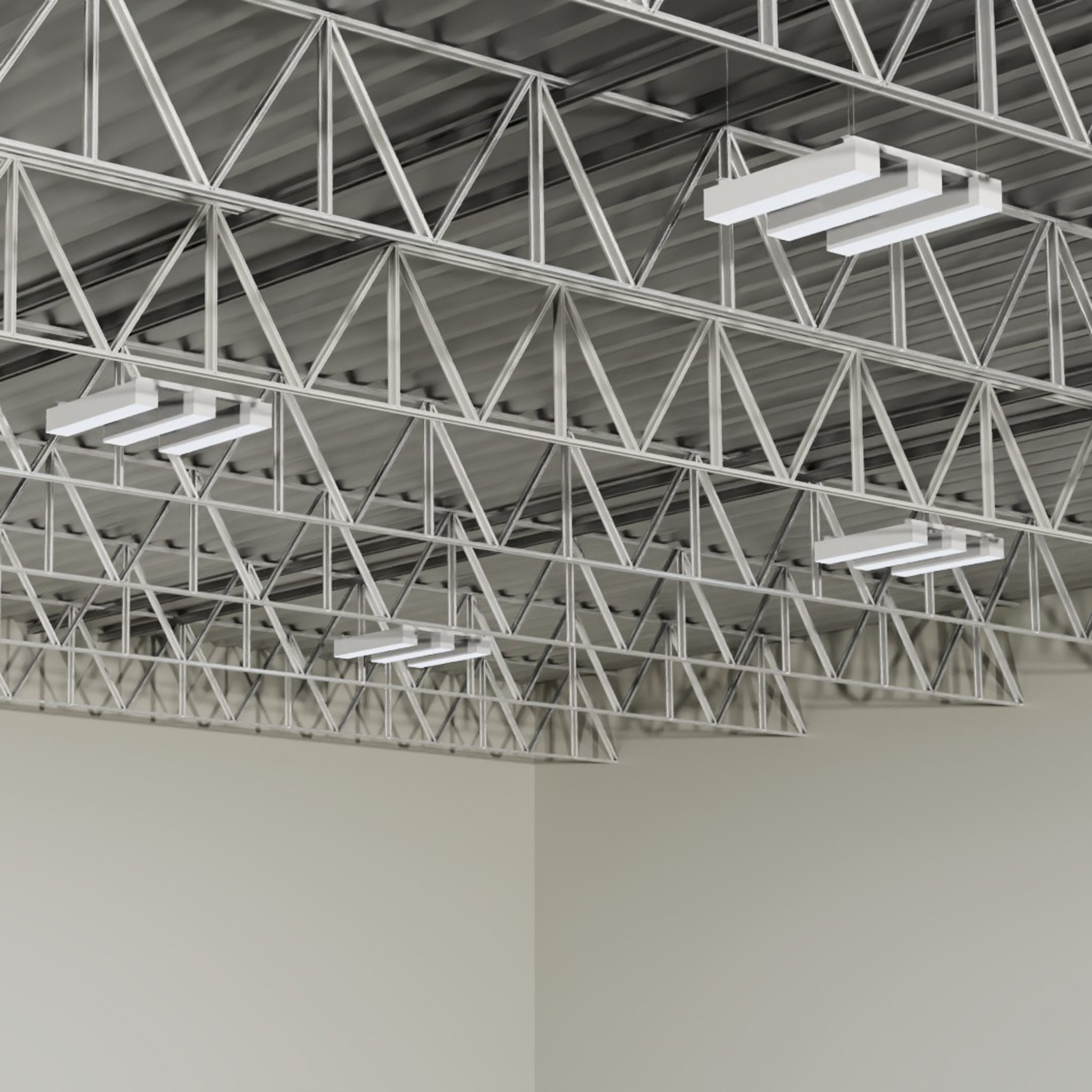

DLC Listed, the BLSDI LED fixture combines superior energy efficiency and rugged design, making it a great choice for retail applications that require long-lasting, low-maintenance lighting.
Files and Resources
Wattage Tables
BLSDI, 3Bar/4L Wattage Table
Number of Bars
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
3
4
4236
31.40
135.10
| Number of Bars | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 3 | 4 | 4236 | 31.40 | 135.10 |
Product Overview
Features
- • Operating temperature ranges available from -20C to 25C
- • L70 of -1+ hours, L90 of -1+ hours
- • Standard 0 - 10V dimming
- • Available in 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
- • Lumen packages are available ranging from 3L (3000lm) to 10L (10000lm)
Construction
- • Manufactured in Ontario, Canada
- • Cold-rolled steel parts are precision bent for added strength and rigidity
- • Access panel provided for easy wiring
- • Powder-coated finish in low-gloss white
Approvals
- • ETL certified to UL Canada and United States standards
- • Dry and Damp Environment Rated
- • Made with UL Listed components
- • DLC Listed* (select models only)
- • DLC Premium* (select models only)
Electrical
- • Available in 120-277V, 120-347V, 347V and 480V
Mounting
- • Holes provided for aircraft cables
- • Optional pendant mount and surface mount brackets
Options
- • Frosted Acrylic Lenses
- • 90 and 95+ CRI Options Available
Files and Resources
Wattage Tables
BLSDI, 3Bar/4L Wattage Table
Number of Bars
Lumen Output
Actual Lumen Output
Fixture Wattage
Lumens per Watt
3
4
4236
31.40
135.10
| Number of Bars | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 3 | 4 | 4236 | 31.40 | 135.10 |
Photometry
BLSDI-4-5L-840-L18 - Cone of Light & Candela Polar Plot
Mtg Height
Light Level
Beam Diameter
6.0 ft
51.0 fc
14.9 ft
8.0 ft
28.7 fc
19.8 ft
10.0 ft
18.4 fc
24.8 ft
12.0 ft
12.8 fc
29.7 ft
14.0 ft
9.4 fc
34.7 ft
16.0 ft
7.2 fc
39.6 ft
| Mtg Height | Light Level | Beam Diameter |
|---|---|---|
| 6.0 ft | 51.0 fc | 14.9 ft |
| 8.0 ft | 28.7 fc | 19.8 ft |
| 10.0 ft | 18.4 fc | 24.8 ft |
| 12.0 ft | 12.8 fc | 29.7 ft |
| 14.0 ft | 9.4 fc | 34.7 ft |
| 16.0 ft | 7.2 fc | 39.6 ft |
