The Pointe-Bleue Series
BLHPB - Linear Pickle-Ball Strip
Files and Resources
IES Files
BLHPB - Photometry.zip
Instructions
BLHPB Installation Instructions.pdf
English
The Pointe-Bleue Series - BLHPB Specification Sheet, 09 2025-EN-US.pdf
Spanish
The Pointe-Bleue Series - BLHPB Specification Sheet, 09 2025-ES.pdf
French
The Pointe-Bleue Series - BLHPB Specification Sheet, 09 2025-FR.pdf
Wattage Tables
BLHPB 8' Wattage
Description

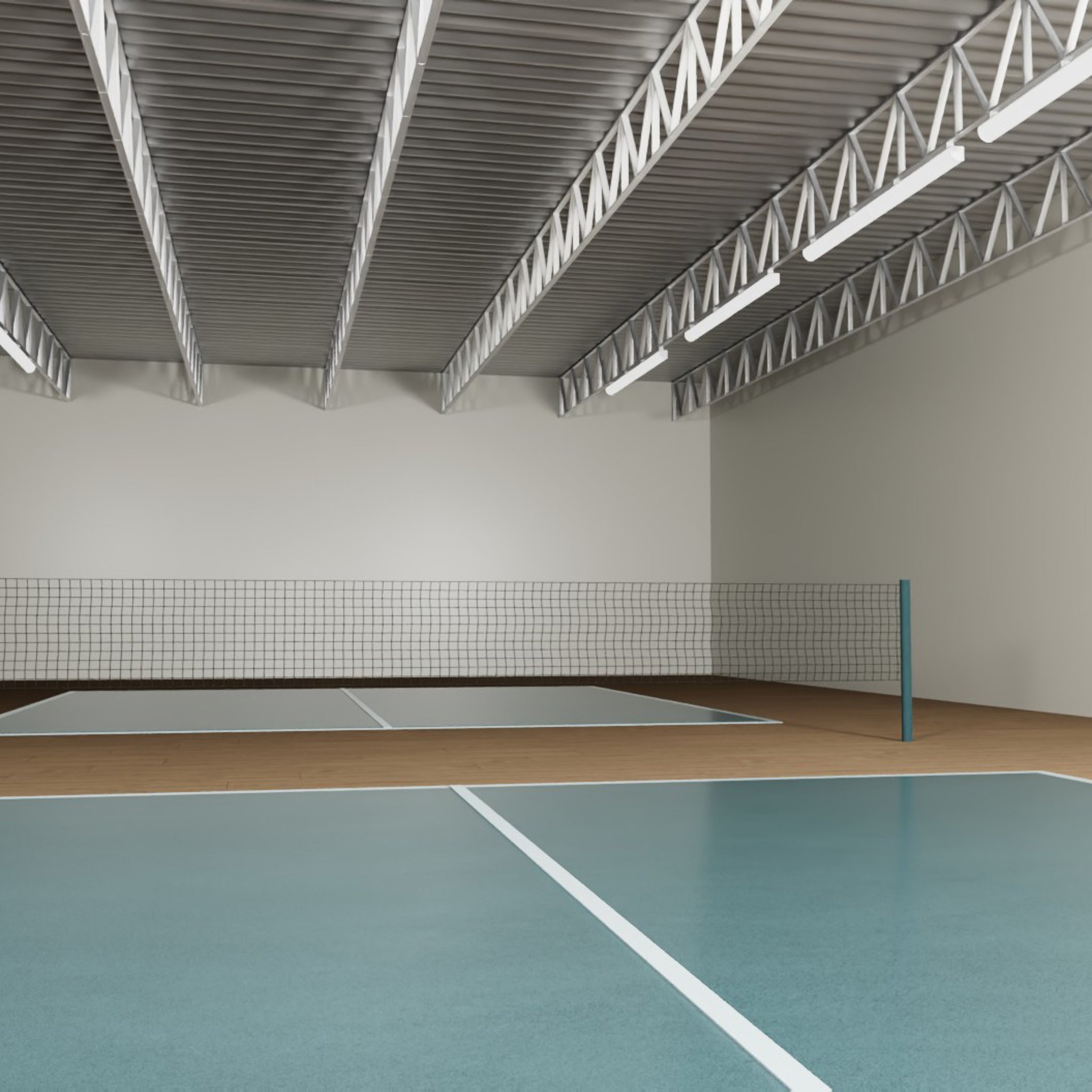

The BLHPB is a linear strip specifically designed for task lighting pickle ball courts. This fixture is excellent with task lighting applications and can produce 38,000 lumens in an asymmetric beam pattern.
Specifications
| Supported Voltage | 120-277V, 120-347V, 347V, 480V |
| Available Sizes | 8' |
| Lumen Output | 38L (38,000 lm) |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| CRI | 80+ standard, 90+ and 95+ available |
| Dimming | 0-10V Standard |
| Mounting | Holes provided for V-hangers, S-hook chain-mounting, or aircraft cables; Optional pendant-mount; |
| Applications | Sports Lighting, Indoor Court Lighting, Displays, Retail Stores, Task Lighting, Suspended, Surface Mount |
Photometry Reports
Files and Resources
Wattage Tables
BLHPB 8' Wattage
| Size | Lumen Output | Actual Lumen Output | Fixture Wattage | Lumens per Watt |
|---|---|---|---|---|
| 8' | 38L | 38099 | 259.2 | 146.99 |
